Built around real production needs

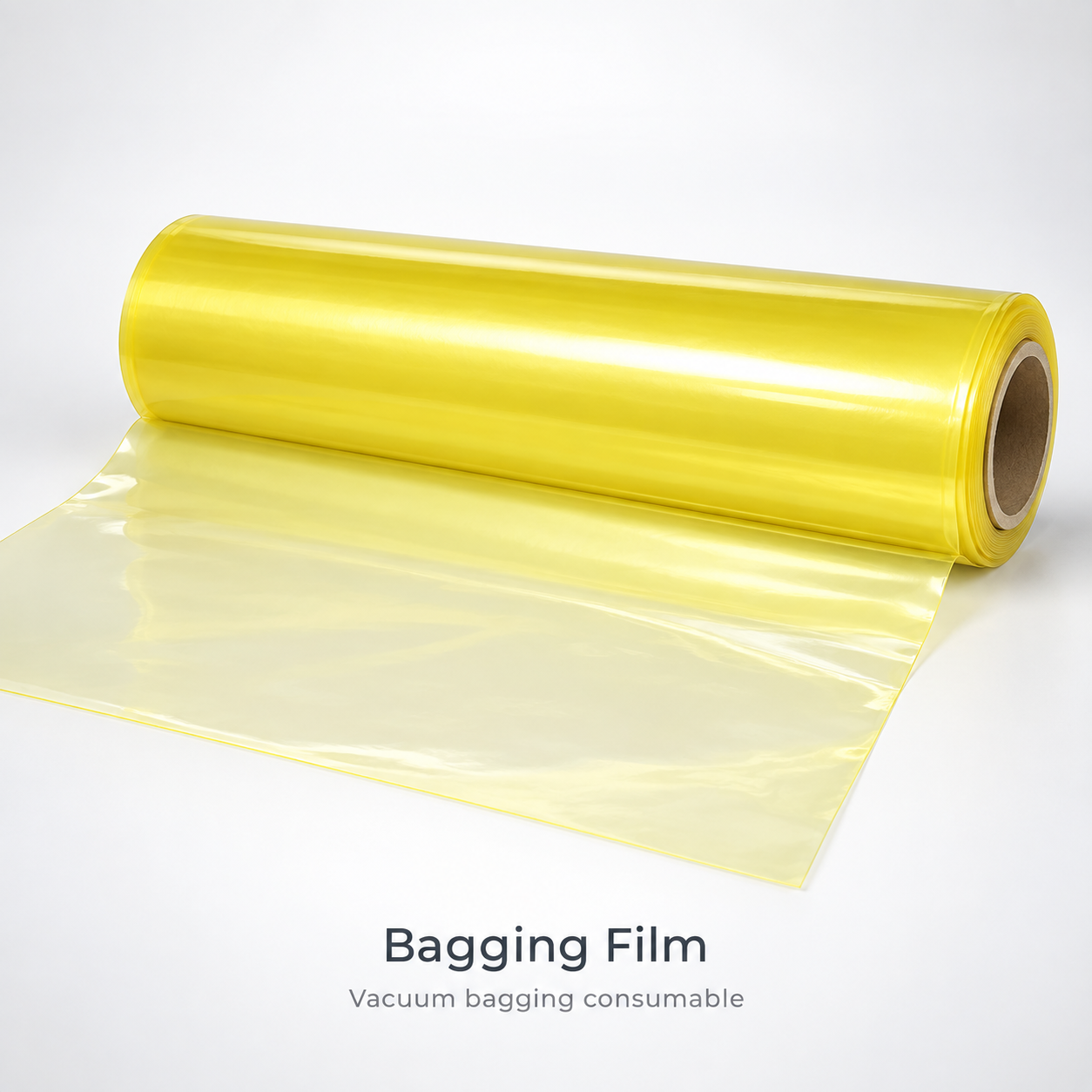

T75 is positioned as a core consumable in the GKFRP vacuum system. The page connects it directly to the complete infusion consumables set rather than treating it as an isolated item.
Key benefits
- Creates an airtight envelope for vacuum processing
- Suitable for vacuum infusion and vacuum bagging
- Compatible with sealant tape
- Designed for composite consumable stack-ups
- Available in roll format
- Support for selecting a compatible consumables system
How to use
- Cut the film larger than the part, leaving material for pleats at corners and changes in geometry.
- Seal it to sealant tape around the perimeter and build pleats so the bag conforms to the laminate without bridging.
- Keep the film away from sharp edges; leak test before infusing.
Position in the stack
Typical stack from the mold surface: laminate, peel ply, release film or infusion mesh, breather, then vacuum bagging film sealed with sealant tape. Choose the film by process temperature and the elongation needed for the part shape.
Specifications, use conditions and application procedures should be checked against the current TDS/SDS before production implementation.
Application information
Film for forming a sealed vacuum envelope
Covers the lay-up and consumables to maintain pressure differential during vacuum bagging or infusion.
Temperature, elongation, width, thickness and puncture resistance must suit mold geometry and the cure cycle.
